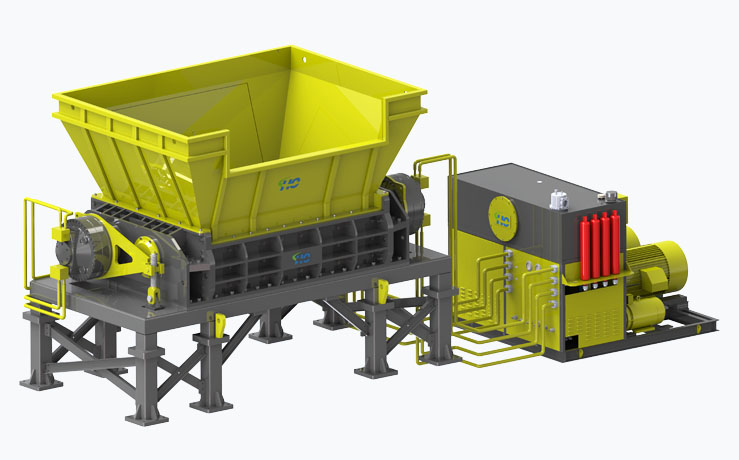

MSW Hook shredder

product advantage

ring a coarse crushing machine, low speed, high torque, used for crushing large garbage,

 garbage, industrial waste, waste wood, will large garbage broken into 200*250mm pieces,

widely used for preliminary broken refuse derived material production and waste

incineration power generation field, large capacity, low maintenance cost, good

reliability. Complete sets of equipment, including motor, reducer, two groups of the

blade shaft, hopper, bracket, PLC control cabinet. It through two sets of knife shaft to

rotate, and the fixed knife cut, tear, extrusion force to reduce the size of the

material. The machine processing capacity greatly, per hour processing capacity from 10

tons to 100 tons of optional. The crushed material particle size 200*250mm.

1. biaxial low speed, high torque, large capacity, firm and durable

2. detachable combined cutter blade design, easy maintenance, reduce maintenance costs

3. blades are made of imported high hardness wear special alloy steel, surface after heat

 treatment, have excellent cutting performance. Can choose titanium processing

technology, make the blade hardness and wear and corrosion resistance, the service life

can be prolonged to 1.5-2 times

4. and reverse rotation can be broken material

5. motor and reducer used international and domestic famous brands, to ensure that the

power system stability

6. bearing seat with patent registration detachable, and can be rapidly disassembled.

Unique sealing structure effectively prevents the broken material into the gear box, the

liquid materials can also protect the bearing and gear

7 multi protection system: mechanical and electrical appliances such as multiple

intelligent protection, with the main motor starting protection, blocking of the motor

overload, auto reverse protection.

Electrical control system:

8.PLC;

• ◇ configuration Siemens touch screen, Chinese display, visual
• ◇ reserved MODBUS communication interface, remote control The key components of
• -- PLC by Siemens, ABB, Schneider and other international well-known brand
• it can be set to automatically start and stop, and automatic operation time and the number of
• ◇ locked rotor current, reversal, reversal time can be freely set
• ◇ belt motor Water Leakage, overload, overheating, short circuit, phase missing protection
• ◇ running status of equipment, motor load current, fault state can be displayed in real time and historical query
• ◇ frequency setting, adjustable knife shaft speed according to the actual processing capacity, more energy saving
